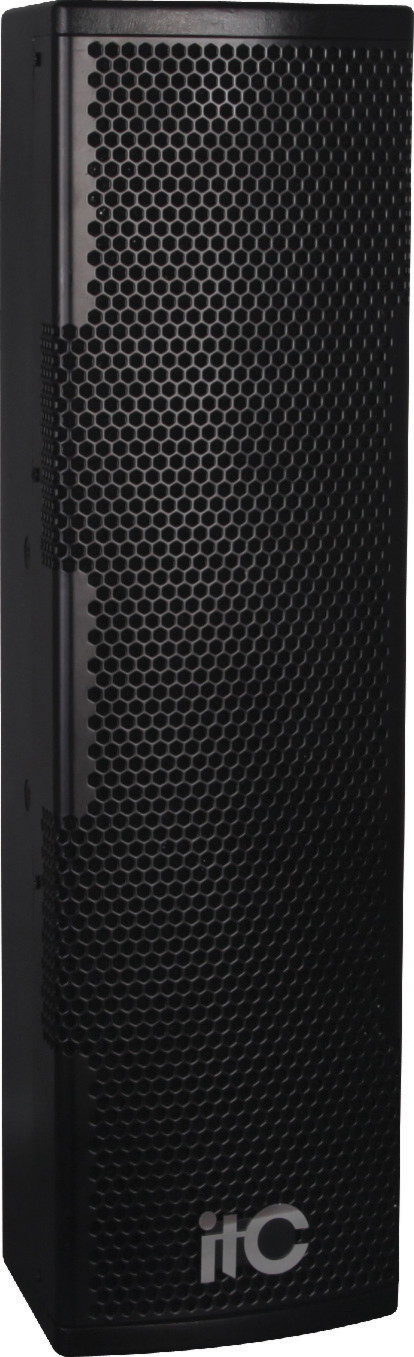

High-end Line Array Speaker

* Adopt four 4.5-inch woofer and one 1-inch compression tweeter * Linear shape, box with 12mm plywood, wear-resistance paint treatment, with plurality of screw holes lifting * The exact design of frequency divider is able to perfect power response and good perfor

Description

* Adopt four 4.5-inch woofer and one 1-inch compression tweeter


* Linear shape, box with 12mm plywood, wear-resistance paint treatment, with plurality of screw holes lifting


* The exact design of frequency divider is able to perfect power response and good performance of vocal part;


* The line array design uses fewer speakers to achieve the larger area sound field cover range.



The scope of application


Conference room, multi-purpose hall, auditorium and etc.



Specifications

Model

TS-5S

Impedance

Frequency

90Hz-20KHz

Power

120W

Sensitivity

95dB/W/M

Angle of Coverage

(H)135°(V)80°

High pitch

1" Compression tweeter x 1

Bass

4.5" Bass x 4

Dimensions

188 x 178 x 665 mm

Weight

9.6Kg
