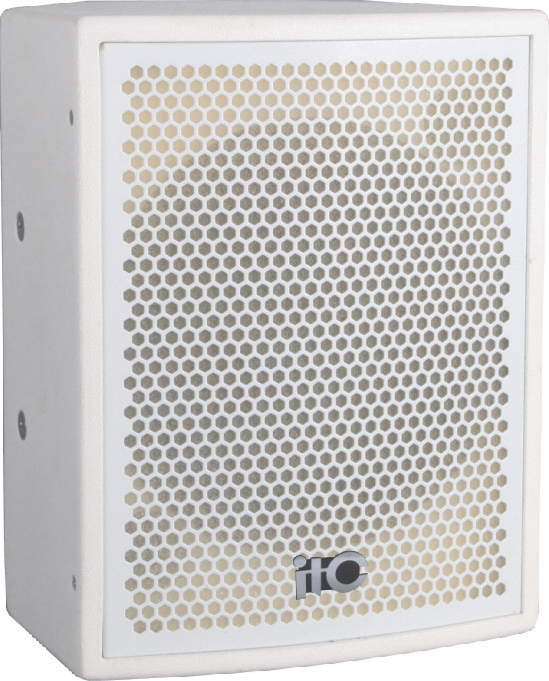

High-end 8-10 inch Coaxial Loudspeaker
TS-08M * Coaxial speaker design, precise frequency, improve voice intelligibility; * Using an 8-inch woofer and a 1.3 inch coaxial compression tweeter; * Box with 15mm plywood, wear-resistance paint treatment, multi-angle lifting holes;
TS-08M
* Coaxial speaker design, precise frequency, improve voice intelligibility;
* Using an 8-inch woofer and a 1.3 inch coaxial compression tweeter;
* Box with 15mm plywood, wear-resistance paint treatment, multi-angle lifting holes;
* A small box of high-power design, light weight, beauty appearance.
The scope of application
For high-end conference room, function rooms, auditoriums and et
TS-10M
* Coaxial speaker design, precise frequency, improve voice intelligibility;
* Using a 10-inch woofer and a 1.3 inch coaxial compression tweeter;
* Box with 15mm plywood, wear paint treatment, multi-angle lifting holes;
* A small box of high-power design, light weight, beauty appearance.
The scope of application
For high-end conference room, function rooms, auditoriums and etc.
|
Model |
TS-08M |
|
Impedance |
8Ω |
|
Frequency |
70Hz-20KHz |
|
Rated Power |
250W (AES) |
|
Sensitivity |
95dB/W/M |
|
Angle of Coverage |
(H)80°(V)70° |
|
Treble |
1.3" Coaxial compression tweeter x 1 |
|
Bass |
8" Bass x 1 |
|
Dimensions |
315 x 248 x 225 mm |
|
Weight |
7.5Kg |
